Connect Email (Gmail)

This guide walks you through connecting a Gmail account to Pinchy so your agents can work with email — reading, searching, drafting, and sending messages.

The setup has two parts: creating an OAuth app in Google Cloud (one-time), then connecting the account in Pinchy.

Prerequisites

• Pinchy is running with HTTPS enabled (see Lock Pinchy to a Domain)
• You’re logged in as an admin in Pinchy
• A Google Cloud Console account (free — any Google account works)

Caution

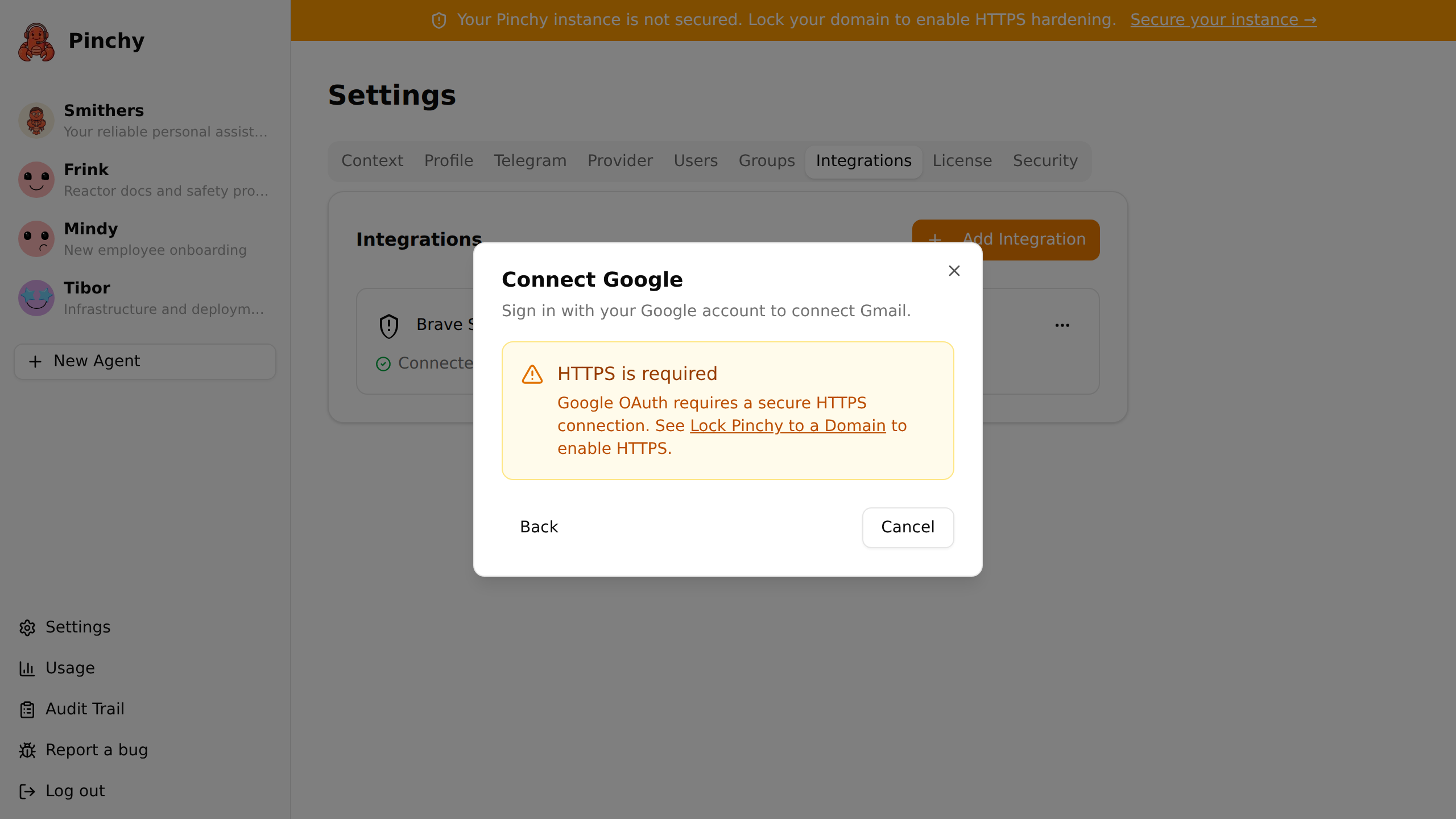

Google OAuth requires HTTPS. The Add Integration wizard shows a warning and blocks the Google flow when Pinchy runs without HTTPS.

Part 1: Create a Google Cloud OAuth app

Google requires you to register your Pinchy instance as an OAuth application before users can sign in with Google. This is a one-time step per Pinchy installation.

1.1 Open Google Cloud Console and select a project

1. Go to console.cloud.google.com
2. In the top bar, click the project name (or Select a project if none is selected)
3. Create a new project (e.g. “Pinchy”) or select an existing one

Tip

Create a dedicated project for Pinchy rather than reusing an existing one — it keeps credentials organized and makes it easy to revoke access later.

1.2 Configure the Auth Platform

Google Cloud uses the Auth Platform to manage OAuth consent screens and app identity. You need to set this up before creating credentials.

1. In the left sidebar, navigate to APIs & Services → OAuth consent screen

   Google redirects you to Auth Platform → Overview. If you see “Google Auth Platform not yet configured”, click Get Started.

2. Under Branding, fill in:

   • App name — enter Pinchy (this name appears on the Google sign-in screen)
   • User support email — select your email address
   • Click Save

3. Under Audience, choose who can use this OAuth app:

   Audience	When to choose	Notes
   Internal	Your company uses Google Workspace (G Suite)	Only people in your organization can connect — no Google review required. Recommended.
   External	Personal Gmail accounts, or no Google Workspace	Anyone with a Google account can connect. Read the note below before choosing this.

   Caution

   External + Testing mode: Google automatically puts new External apps into “Testing” mode. In this mode, refresh tokens expire after 7 days — which means the agent loses access to email every week and needs to be reconnected manually. To fix this, you must either switch to “Internal” (if you have Google Workspace) or publish your app after completing the setup.

1.3 Add Gmail scopes

Scopes define what data your OAuth app can access. You need to add the Gmail scopes that match the permissions you want to grant agents.

1. In the Auth Platform sidebar, click Data Access

2. Click Add or remove scopes

3. In the filter, search for gmail and add these scopes:

   Scope	Required for
   https://www.googleapis.com/auth/gmail.readonly	Read and search emails
   https://www.googleapis.com/auth/gmail.compose	Create drafts and send emails
   https://www.googleapis.com/auth/userinfo.email	Identify the connected account

4. Click Update and then Save

Tip

If you only want agents to read email (no sending), you can skip the gmail.compose scope. You can always add it later if needed.

1.4 Add test users (External apps only)

If you chose External audience, Google restricts access to explicitly approved test users while your app is in Testing mode.

1. In the Auth Platform sidebar, click Audience
2. Under Test users, click Add users
3. Enter the Gmail address(es) of the accounts you want to connect to Pinchy
4. Click Save

Note

Test users see a warning screen (“This app isn’t verified”) before signing in. This is expected for apps in Testing mode — users can click through it. Once you publish the app, this warning disappears.

1.5 Create OAuth credentials

Now you create the actual Client ID and Client Secret that you’ll enter in Pinchy.

1. In the Auth Platform sidebar, click Clients, then Create client (alternatively: APIs & Services → Credentials → Create Credentials → OAuth client ID)

2. Under Application type, select Web application

3. Give it a name (e.g. “Pinchy”)

4. Under Authorized redirect URIs, click Add URI and paste the redirect URI shown in the Pinchy wizard (Settings → Integrations → Add Integration → Google, step 1)

5. Click Create

A dialog appears with your Client ID and Client Secret. Copy both values now — the Client Secret is only shown once. (If you lose it, you can create a new one in the credentials list.)

---

Part 2: Connect the account in Pinchy

1. Open the Add Integration wizard

   In Pinchy, go to Settings → Integrations and click Add Integration, then select Google.



2. Enter your OAuth credentials

   Paste the Client ID and Client Secret from Part 1 and click Save & Continue.

   Pinchy encrypts these credentials and stores them on your server — they never leave your infrastructure.

3. Connect a Google account

   Click Connect Google Account. Google’s sign-in screen opens — sign in with the Gmail account whose email the agent should access.

   After signing in, grant the requested permissions. If your app is in Testing mode, you’ll see a warning screen first — click Continue to proceed.

4. Verify the connection

   You’re redirected back to Pinchy. The integration list now shows the connected Gmail address with a green “Connected” status.

For subsequent Google connections (a second Gmail account), the OAuth credentials step is skipped — you go straight to “Connect Google Account”.

---

Part 3: Grant agent email permissions

A connection alone doesn’t give any agent access. You must explicitly grant permissions per agent.

1. Open the agent you want to connect to email

2. Click the gear icon to open Agent Settings

3. Select the Permissions tab

4. In the Email section, select the connected account and check the operations this agent may perform:

   Permission	What it enables
   Read messages	List, read, and search emails
   Create drafts	Create draft emails (saved but not sent)
   Send messages	Send emails immediately — cannot be undone

5. Click Save

Caution

Send messages is a powerful permission. The agent can send email from the connected account without human review. Consider using Create drafts instead — a human reviews and sends drafts manually.

---

Publishing an External app

If you chose External audience and want to remove the 7-day token expiry and the “This app isn’t verified” warning, you can publish your app.

For apps that only use Gmail scopes, Google may require a security review before publishing. This process can take several weeks. An easier alternative for most Pinchy users is to switch to Internal audience (requires Google Workspace) — no review needed.

To publish an External app:

1. Go to Auth Platform → Audience
2. Under Publishing status, click Publish app
3. Follow the prompts — if your app uses restricted scopes (Gmail is restricted), Google will require a verification process

---

Test it

Open the agent’s chat and try a few queries:

• “Show me my latest unread emails”
• “Search for emails from max@example.com about invoices”
• “Draft a reply to the last email saying we’ll process it today”
• “How many unread emails do I have?”

---

Available tools

When email permissions are granted, the agent gets access to these tools:

Tool	Permission required	Description
email_list	Read	List emails from a folder (INBOX, SENT, DRAFTS). Supports filtering by read status.
email_read	Read	Read the full content of a specific email by ID.
email_search	Read	Search emails using Gmail search syntax (e.g. from:user@example.com subject:invoice newer_than:7d).
email_draft	Draft	Create a draft email. Can also create reply drafts with replyTo.
email_send	Send	Send an email immediately. Can also send replies with replyTo.

---

Token refresh

Google access tokens expire after about one hour. Pinchy automatically refreshes expired tokens in the background — no action required.

If a refresh fails (e.g. the Google account revoked access, or the refresh token expired after 7 days in Testing mode), remove the connection in Settings → Integrations and reconnect the Google account.

---

What’s next

• Integrations — how connections and permissions work
• Agent Permissions — the full allow-list model
